To display your text, Unicode or not, Nisus Writer Express must know how to draw the letters on the screen. A “font” tells Nisus Writer Express how to do this. A font contains drawing instructions for various letters and combinations of letters. These are called “glyphs”. It also contains information on how to map letters of text to glyphs.

If you have a Unicode font, that means that the fonts “knows” how to convert text stored in the Unicode format (remember, text in a computer is just a bunch of numbers) to glyphs. That’s it. Nothing special. Because the font understands Unicode, it generally includes the ability to draw letters from lots of different alphabets instead of just Roman or Japanese or whatever. But that is not always the case.

Incidentally, mapping your text to glyphs is not always a simple process. For example, usually it’s a one to one mapping. The letter ‘A’ maps to glyph 1, etc. Sometimes, however, it can be quite complex, as in ligatures or the cursive Arabic characters that have initial, medial and final forms.

To see an example of this, open Nisus Writer Express and choose the Mac system font Zapfino. Now, type the word “Zapfino”. As soon as you type the whole word, you will see the whole thing change to a specialized cursive form. In the following two occurrences of the word Zapfino, the first has ligatures turned off, the second turned on:

Zapfino → Zapfino

The reason for this is that the Zapfino font contains a special glyph that is displayed whenever it encounters the text “Zapfino” (with ligatures on), but no other time.

How Nisus Writer Express Displays Your Text

Whenever you open an existing (or a Nisus Writer Classic) file in Nisus Writer Express…

• First Nisus Writer Express converts the text to Unicode (if it was not already such). No matter what type of file you open, when your file is open and displayed on the screen, we keep a copy of your file as Unicode stored in memory. When you save the file you can choose the encoding to use.

• Second Nisus Writer Express determines how to draw each letter of your text. To do this, it uses the font you have applied from a style, the Character palette, etc. Nisus Writer Express checks each letter of your text to make sure the font you have chosen can draw that letter. If not, then a substitute font is found and used.

• Third Nisus Writer Express places each letter on lines of text. The application may place this text going left to right or right to left, depending on the direction of your paragraph and the text involved.

• Finally, Nisus Writer Express must place the lines of text on the page. This depends on your paragraph alignment.

So you can see, that to take your text—even if it is “pure” Unicode—Nisus Writer Express must pick:

◦ font

◦ alignment

◦ other paragraph settings

to display it with. Even if you think there is “no” formatting applied, there has to be something. It’s a bit like asking for a car with only “fuel” and no vehicle.

Typing on a Computer

Here are some rules to remember

• Type only one space between sentences.

The fractional fonts (in which an “m” uses more space than an “l”) that the computer uses make the extra spacing between sentences superfluous.

Compare a fractional font (11 point Bookman Old Style)

The quick brown fox jumps over the lazy dog. How razorback-jumping frogs can level six-piqued gymnasts!

With a monospaced font (9 point Courier)

The quick brown fox jumps over the lazy dog. How razorback-jumping frogs can level six-piqued gymnasts!

• Press ⇥ only to line up columns, not to begin a paragraph with an indentation.

If you want an indent at a new paragraph you use the first line indent indicator on the ruler.

• Press ⏎ only to begin a new paragraph, not at the end of each line or to “double-space.”

The Macintosh makes its sound only when you try to do something that it cannot do at that time—not, as in the days of typewriters (if you’re old enough to remember them) when you reach the end of a line.

Typing Unusual Characters

Macintosh provides you with a wide variety of characters. Among these characters you can find symbols (often called dingbats ¹⁴) and characters from almost every written language.

For more information about entering text in various languages see “Write in Multiple Languages” on page 37, and the section “Enter special characters into your text” on page 33.

☞ While you can type these unusual characters, Nisus Writer Express supports entering them directly from the menus and from a Special Characters palette as explained in “Enter special characters into your text” on page 33. All the characters available in this manner are listed beginning on page 429.

Turn on display of the Input (keyboard “flag”) menu

1. Choose the menu command: Apple > System Preferences… and choose (click) Keyboard from the second row of icons.

2. In the Keyboard preferences click Input Sources the second tab from the right at the top.

3. Click the Plus + button and check any input methods (keyboards) you want to have appear on the menu as illustrated in Figure 357.

Keyboard click + to and input source.png

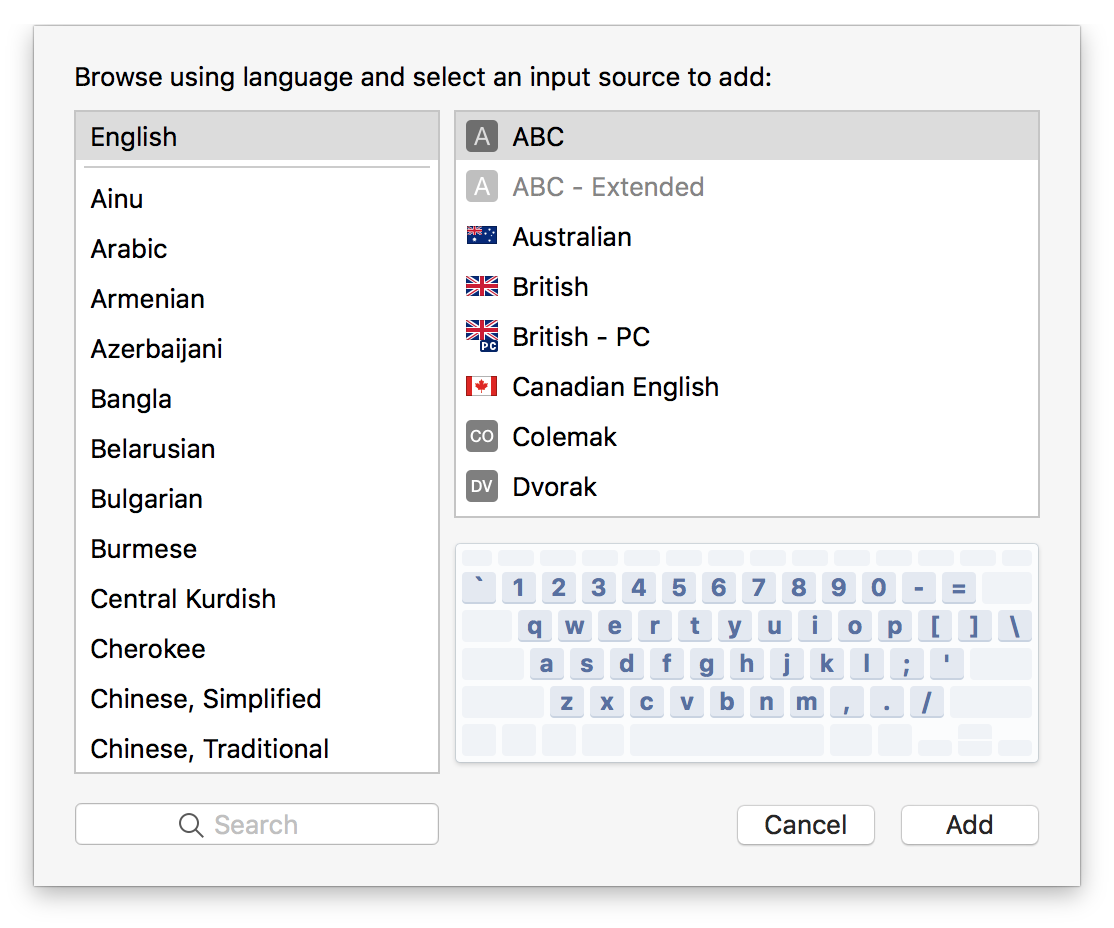

Figure 357
The input source selection panel

4. Select each language’s input source you want to have appear on your Input menu and click Add.

5. Check Show Input menu in menu bar.

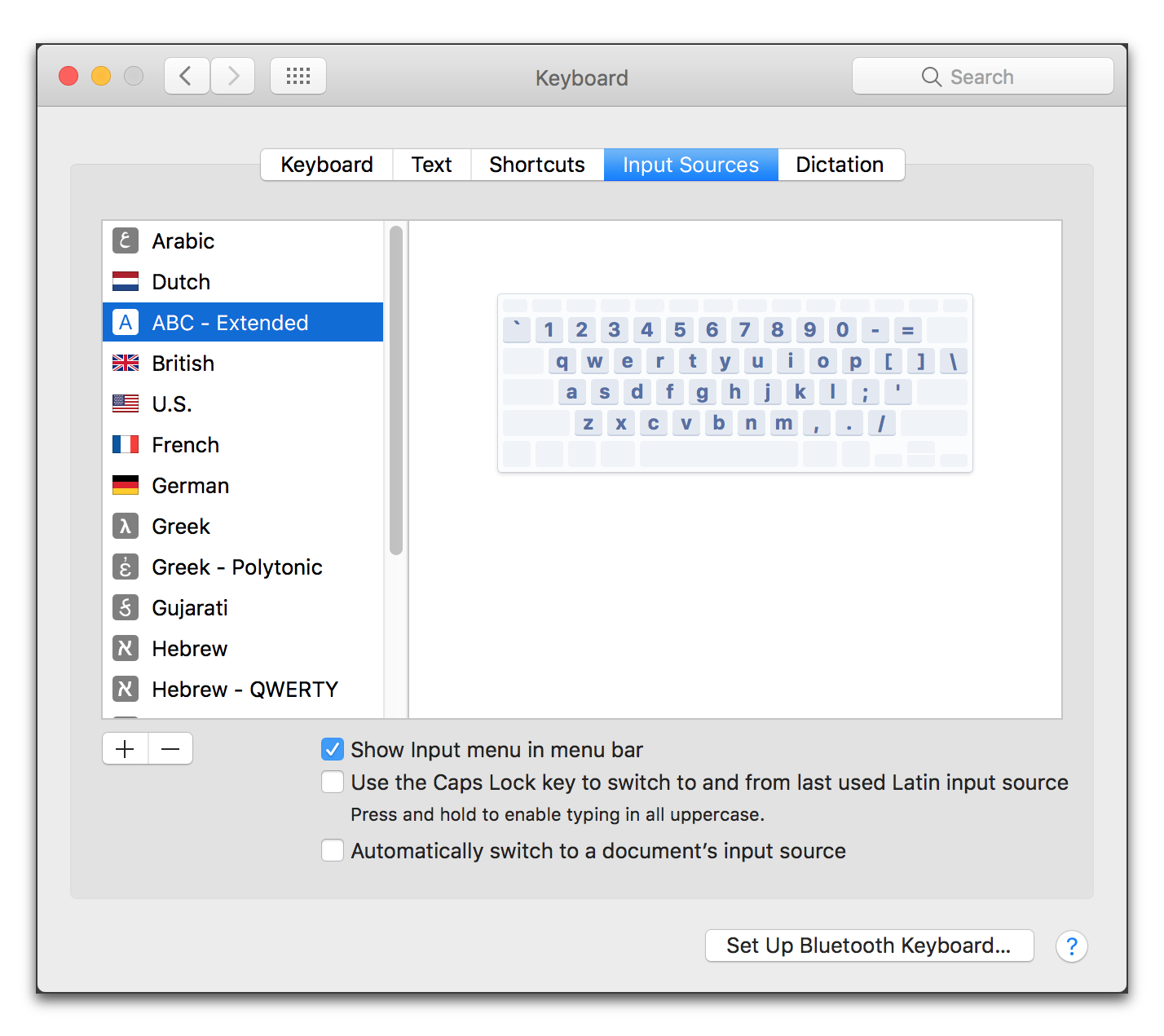

Figure 358
The Input Sources tab of the Keyboard (System) preferences (in macOS 10.13 (High Sierra)

6. Close the dialog.

Enter a character using the keyboard

Most of the unusual (Roman based) characters are made by pressing a combination of a key on the keyboard and a “modifier” key such as ⌥. For example, you can also create the symbol “§” as illustrated in Figure 359 below, in the small application called Keyboard Viewer which is available from the bottom of the Input (keyboard) menu) if you have turned it on.

Other unusual characters are called delayed strike characters. As illustrated in Figure 360 below, these require you to press ⌥ and then two keys to give you the character you want. To help you find these keys (in this instance ü) which (in the Keyboard Viewer) when you release the ⌥ key illustrates all the characters that can have the umlaut above them.

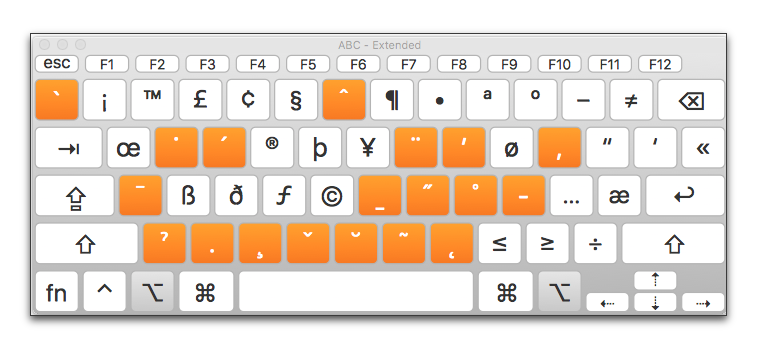

Figure 359
Sierra Keyboard Viewer of the ABC - Extended keyboard after pressing ⌥

Figure 360
Tiger Keyboard Viewer of the ABC - Extended keyboard after pressing ⌥ u

Table 30 below identifies many of these alphabetic characters and how you create them.

Typing Special (Extended Roman) Characters
To type:		press
à, è, ì, ò, ù	Accent Grave	⌥ ` and then the letter.
À, È, Ì, Ò, Ù	UPPERCASE Accent Grave	⌥ ⇧ ` and then the letter.
á, é, í, ó ú	Accent Acute	⌥ e and then the letter.
Á, É, Í, Ó Ú	UPPERCASE Accent Acute	⌥ ⇧ e and then the letter.
â, ê, î, ô, û	Circumflex	⌥ 6 and then the letter.
Â, Ê, Î, Ô, Û	UPPERCASE Circumflex	⌥ ⇧ 6 and then the letter.
ã, õ, ñ	Tilde	⌥ n and then the letter.
Ã, Õ, Ñ	UPPERCASE Tilde	⌥ ⇧ n and then the letter.
ä, ë, ï, ö, ü, ÿ	Umlaut	⌥ u and then the letter.
Ä, Ë, Ï, Ö, Ü, Ÿ	UPPERCASE Umlaut	⌥ ⇧ u and then the letter.
ā, ē, ī, ō, ū, ȳ, z̄, etc.	Macron	⌥ a and then the letter.
ḥ, ṭ, ḳ, etc.	under dot	⌥ x and then the letter.

Table 30
Typing Special characters using the U.S. Extended keyboard

The computer uses many other (“invisible”) characters to affect the display of your text on screen and on paper. Each space, tab and Return is counted as an individual character, a “value” added to your file. Additional characters that affect the format of your document include

• Page Break
Choose the menu command: Insert > Page Break to force succeeding text to begin at the top of a new page.

• Soft Return
Press the ⇧ and ⏎ keys on your keyboard to force succeeding text to begin a new line without beginning a new paragraph.

• Tab
Press the ⇥ key on your keyboard to force succeeding text to begin at the next tab stop.

• Space
Press the Space Bar on your keyboard to enter a space between numbers and letters, etc.

• Non-Breaking Space
Press ⌥ and the Space Bar on your keyboard to enter a space between numbers and letters, etc. that prevents the “words” on either side from breaking at a line wrap.

☞ You can see how Nisus Writer Express displays these “invisible” or “formatting” characters in Table 29 on page 374. To turn on their display, choose the menu command: View > Show Invisibles.

Type “special” Yiddish characters

• “Veis” (בֿ the Vet with an “overline” which appears at the beginning of a word)

1. Type the vet ב

2. Type the “overline” which appears under the “Delete” key ֿ .

• “Fay” (פֿ the Pey with an “overline” which appears at the beginning of a word)

1. Type the pey פ

2. Type the “overline” which appears under the “Delete” key ֿ .

• “Ḥirik Yod” (י with a dot under it)

1. Type the Yod י .

2. Press ⌥ and type the “4” on the numbers row “ ִ

” This displays יִ .
